Neck Angle, Oops!

Everyone does something stupid once in a while… but this was really, really dumb!

Since I’ll be using a Tune-o-matic bridge, the neck needs to be angled down from the body. I do this by shaving off the required amount from the heel. Well, I did that… but you can see where I went wrong?

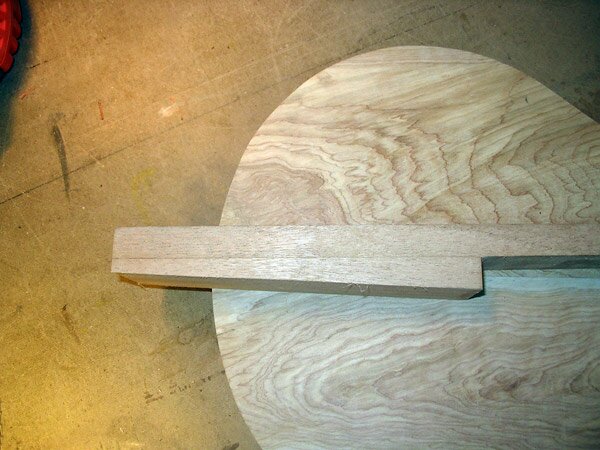

wrong angle
Cutting the required angle in the heel, just that… it’s going in the wrong direction

This is going to give a neck going upwards from the body. Doh!

Need to fix it…

About araz

I'm an ex research scientist, now building electric guitars :)
